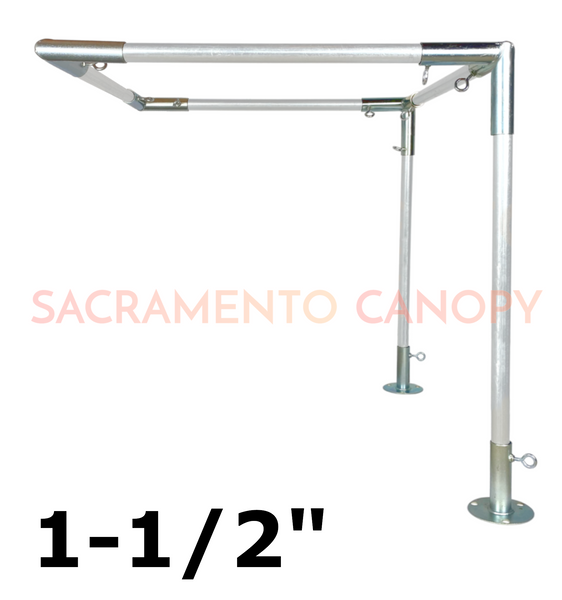

1-1/2" Flat Roof Awning Kits (10'x10/20/30/40')
Kits include the Fittings and Conduit Hangers only. The conduit frame piping is NOT included. Frame piping must be purchased separately. The main framework poles (Electrical Metallic Tubing - EMT) are sold in standardized 10' lengths at any major hardware store.
Canopy Fittings are made of galvanized steel with welded nuts and eye bolts for easy installation.
Instructions for assembly are included with all Canopy Kits.
1-1/2” Fittings pair with 1-1/4” EMT.
Actual Fitting Inside Diameter 1.550" (+/- .02")
1-1/2" Flat Roof Awning Kits come complete with all Roof Fittings and Conduit Hangers needed to fixate your Awning to a building/structure. Custom options include; Size, Foot Pads, and Side Wall Fittings.
Custom Options:
1. Size - Select your desired structure size indicated by roof square foot coverage. This Kit provides Fittings to space your Canopy poles every 10' down the length. 10' Frame Spacing is the industry standard. This economy spacing is ideal if minimal modifications of EMT poles are preferred (EMT come in standardized 10' lengths).
2. Foot Pads - For temporary, semi-permanent and permanent structures, Foot Pads provide stabilization and ground anchor points for your Canopy structure. The base of each Foot Pad Fitting has four pre-drilled holes. One in the center designed for rainwater drainage and three on the perimeter allowing anchor nails or hardware of your choice to secure your structure to the ground.
3. Side Wall Fittings - Add 1 Side Wall to your Awning for additional shade. The Side Wall upgrade not only ties your Canopy structure legs together for added horizontal strength but will also provide an attachment point to extend your Canopy covering down from the roof for extra side protection. To purchase additional Side Wall Fittings beyond the standard upgrade options, search FOL, FOT, and FO3 found in the "Shop Now" menu under “Canopy Fittings."

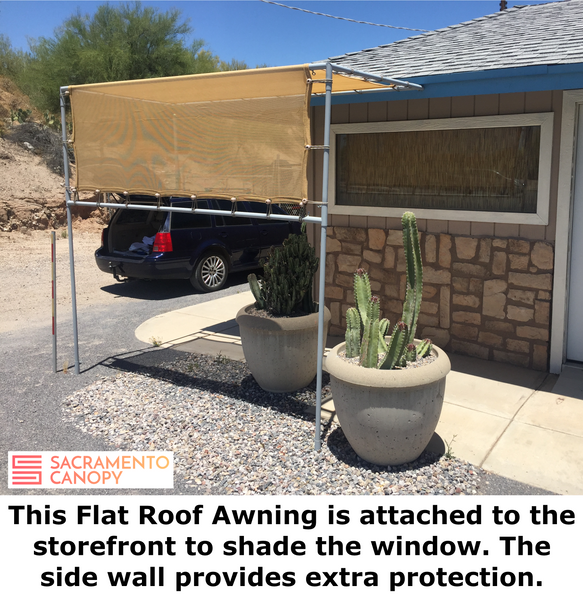

A Flat Roof Awning is an excellent way to provide shade for your porch/patio. Awnings are designed to attach directly to a building. This economical design saves money because less Canopy Fittings and EMT poles are needed than when building a stand- alone Canopy structure. Protective structural coverings to consider are; shade nets, shade cloth, polycarbonate panels, canvas, chicken wire and corrugated metal, other. *Also sold separately.
Fitting quantities you will receive based on your custom order:

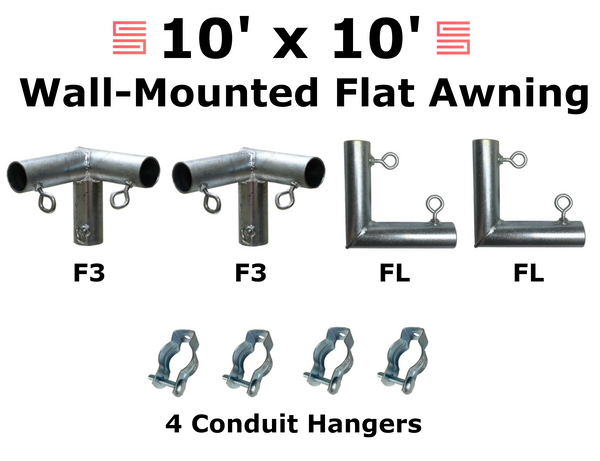

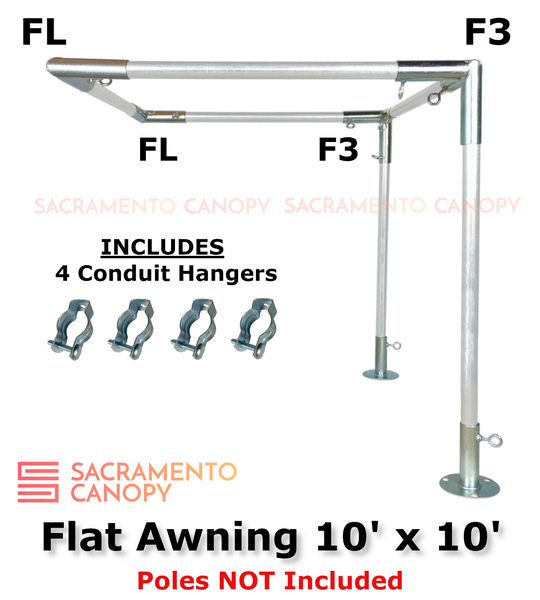

Flat Roof Awning 10'x10' (Standard 10' Frame Spacing) configurations come with 4 Roof Fittings and 4 Conduit Hangers. Custom options include; 2 Foot Pads, and 1 Side Wall (2 Fittings).

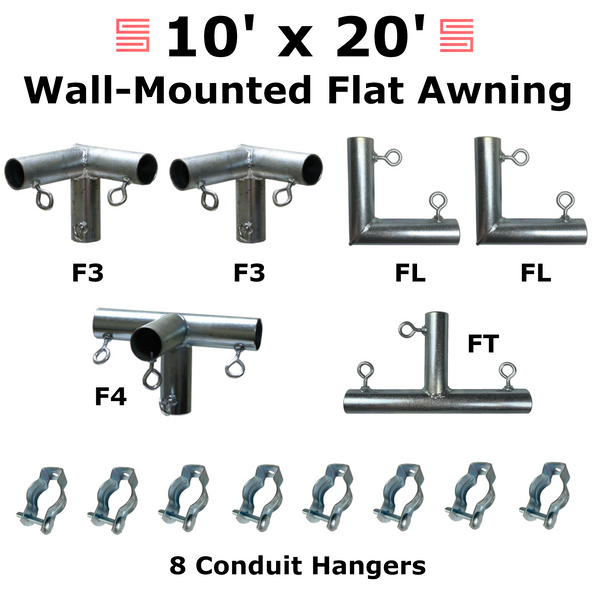

Flat Roof Awning 10'x20' (Standard 10' Frame Spacing) configurations come with 6 Roof Fittings and 8 Conduit Hangers. Custom options include; 3 Foot Pads, and 1 Side Wall (3 Fittings).

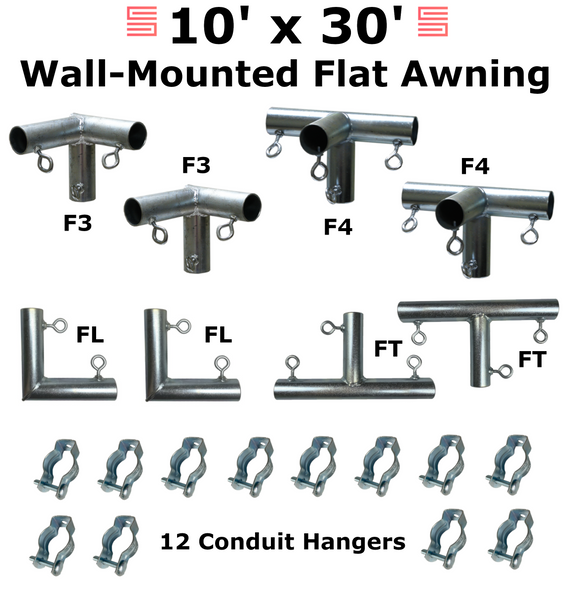

Flat Roof Awning 10'x30' (Standard 10' Frame Spacing) configurations come with 8 Roof Fittings and 12 Conduit Hangers. Custom options include; 4 Foot Pads, and 1 Side Wall (4 Fittings).

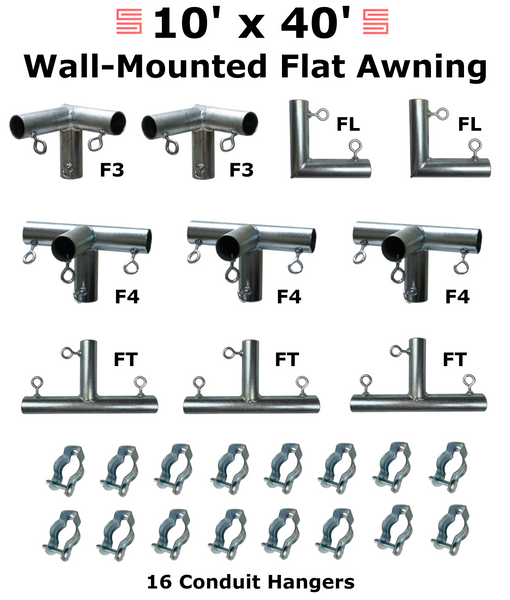

Flat Roof Awning 10'x40' (Standard 10' Frame Spacing) configurations come with 10 Roof Fittings and 16 Conduit Hangers. Custom options include; 5 Foot Pads, and 1 Side Wall (5 Fittings).
